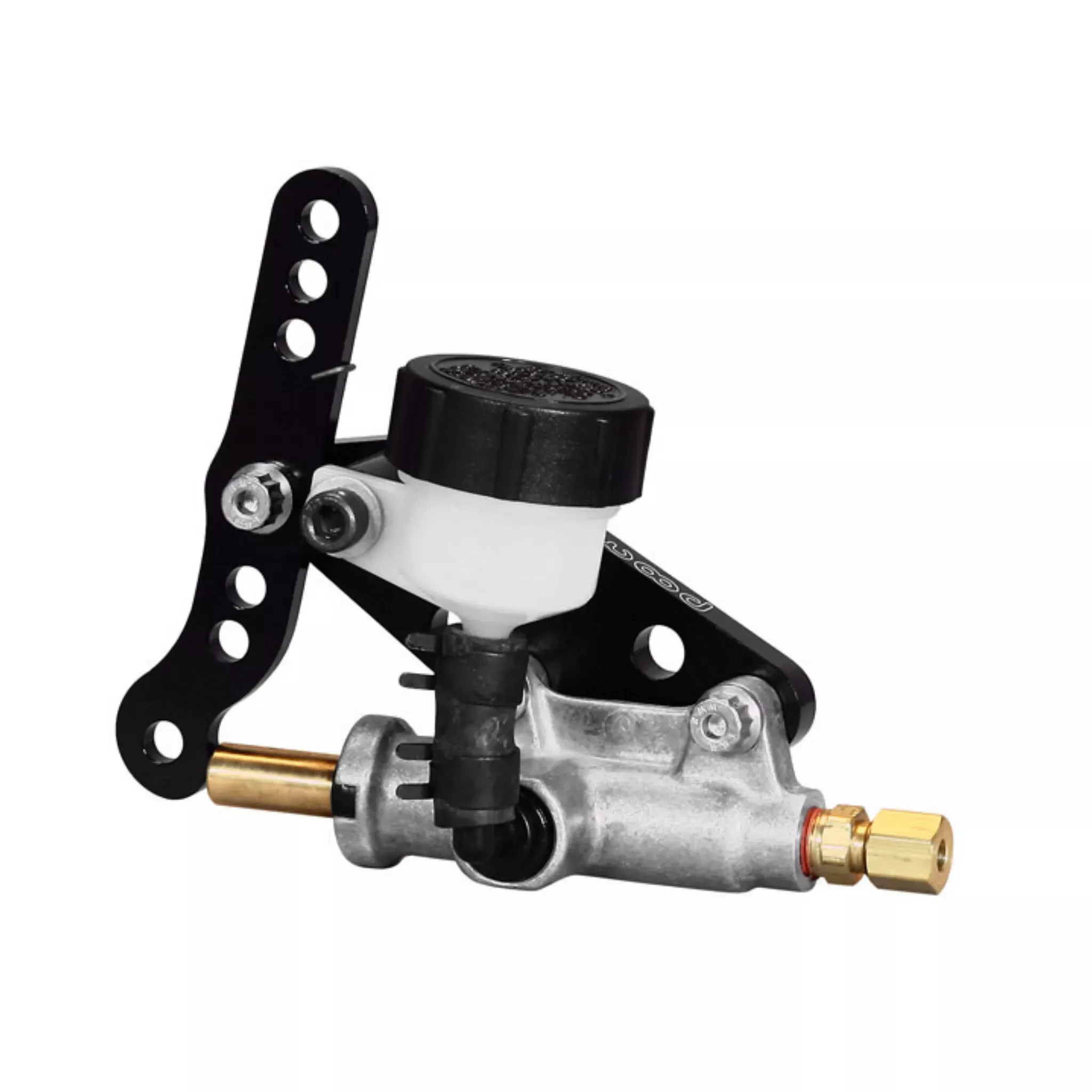

Super lightweight (0.55 lbs.) 1/2” bore aluminum master cylinder is designed for Mini Sprint and Kart racing. The unit is ready to install and includes an adjustable lever ratio, remote mount fluid reservoir, billet bracket, lock-wire drilled hardware, and fluid line fitting.
Master Cylinder – Go Kart – 1/2 in Bore – 0.700 in Stroke – Direct Reservoir – Aluminum – Natural – Kit – MPN: 260-5520
| Brand | Wilwood |
| Part Number | 260-5520 |
| Bore Diameter | 0.5 in |
| Stroke Length | 0.7 in |
| Cap Included | Yes |
| Chamber Quantity | Single |
| Pushrod Included | Yes |
| Outlet Port 1 Size | 1/8 in NPT |
| Outlet Port 1 Style | Female |
| Reservoir Style | Integral |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Reservoir Color | White |
| Reservoir Finish | Natural |
| Fittings Included | Yes |
| Fitting 1 Quantity | 1 |
| Fitting 1 Side A Thread | 1/8 in NPT |
| Fitting 1 Side A Style | Male |
| Fitting 1 Side B Thread | 3/16 in |
| Fitting 1 Side B Style | Compression Fitting |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Kit |
