Specifications

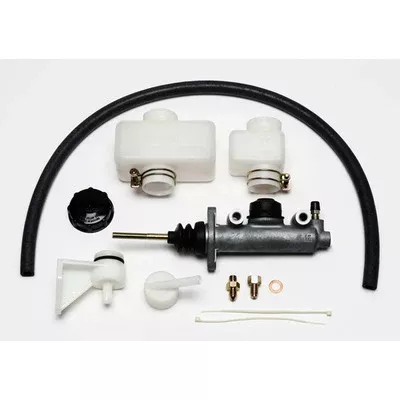

Combination Remote Master Cylinders offer six different bore sizes and four different installation configurations that are available with this master cylinder kit. Precision machined from high strength aluminum, this kit includes both small and large size reservoirs which can be mounted directly on the master cylinder or remotely mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles.
| Master Cylinder Dimensions |
| Bore Size |
1-1/8″ |
| Area (in²) |
0.970 |
| Stroke |
1.00 |
| Volume (cu in) |
0.97 |
| Master Cylinder Description |
| Type |
Single Outlet |
| Outlets |
1 |
| Material |
Aluminum / Plastic |
| Finish |
Bare |
| Reservoir |
| Res Type |
Remote |
| Res Size (oz) |
10.7 or 4.0 |
| Res Size(cu in) |
19.3 or 7.2 |
| Additional Dimensions |
| Overall Length(in) |
9.87″ |
| Flange to End Length (in) |
5.56″ |
| Inlet Size (in) |
1.35″ |
| Inlet Fit (in) |
3/8″ Hose |
| Outlet Size 1 (in) |
3/8-24 |
| Outlet Fit 1 (in) |
3/8-24 IF Female |
