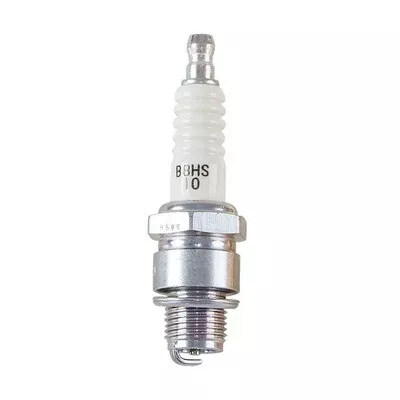

NGK Standard Spark Plug 5126 B8HS-10

Specifications

Fitment

NGK standard plugs are constructed for longer life and optimum performance.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage
• MPN: B8HS-10

Warranty	1 Year
Torque Specs	Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
Brand	NGK
Heat Range	8
Longevity	30k Miles
Resistor	No

Shell

Thread Size	14mm
Thread Pitch	1.25mm
Seat Type	Gasket
Reach	12.7mm (1/2″)
Hex Size	13/16″ (21mm)
Terminal Type	Removable Nut
Overall Height	ISO

Center Electrode

Material	Nickel
Type	Standard
Size	2.5mm
Projection	Non-Projected

Ground Electrode

Material	Nickel
Type	Standard
Quantity	1

Automotive

Sorry, no automotive applications are associated with this part.

Non Automotive

•  Marine
  •  Outboard
    •  MARINER
    •  Mariner
    •  MARINER
    • Mariner
    •  Nissan
    •  NISSAN
    •  Nissan
    •  NISSAN
    •  Nissan
    •  NISSAN
    •  Nissan
    •  NISSAN
    •  Nissan
    •  SUZUKI
    •  Suzuki
    •  SUZUKI
    •  Tohatsu
    •  TOHATSU
    •  Tohatsu
    •  TOHATSU
    •  Tohatsu
    •  TOHATSU
    •  Tohatsu
    •  TOHATSU
    •  Tohatsu
    •  TOHATSU
    •  Tohatsu
    •  TOHATSU
    •  Tohatsu
    •  TOHATSU
    •  Tohatsu
    •  Yamaha
    •  YAMAHA
    •  Yamaha
    •  YAMAHA
    •  Yamaha
    •  YAMAHA
    •  Yamaha
    •  YAMAHA
    •  Yamaha
    •  YAMAHA
    •  Yamaha
    •  YAMAHA
    •  Yamaha
    •  YAMAHA
    •  Yamaha
    •  YAMAHA
    •  Yamaha
    •  YAMAHA
•  Motorcycle
  •  Motorcycle
    •  YAMAHA
    •  Yamaha
    • YAMAHA
    •  Yamaha
  •  Motorcycle/Moped/Scooter
    •  YAMAHA
•  Recreation
  •  Personal Watercraft
    •  ULTRANAUTICS
  •  PWC
    •  Ultranautics
