Specifications

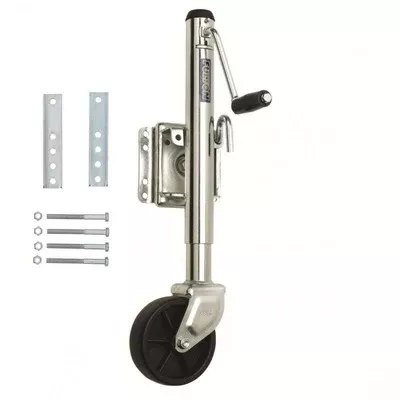

Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. For weld-on versions include all necessary mounting hardware. For weld-on applications, we offer two styles of mounts for both 1/2″ and 3/8″ pull pin models. The Fulton brand bolt-thru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3″ x 5″ trailer frame.
- Extensive choice of popular models, Sidewind Crank with Round or Suare Tubes
- Strong proprietary bushing materials
- Stable formed heavy-gauge steel construction
- Dependable design
- Lift capacity from 400 lbs. to 5,000 lbs.
- MPN: XP100301
| Brand: |
Fulton |
| Part Number: |
XP10 0301 |
| Warranty: |
Limited 5 Year Warranty |
| UPC: |
783192011770 |
| Dimensions: |
6.5″ L x 11″ W x 23.5″ H (Shipping Dimensions) |
| Weight: |
15.65 lbs. |
| Finish: |
Z-Max 600 |
| Package Type: |
Bulk |
| Handle Style: |
Sidewind |
| Capacity: |
1,200 lbs. |
| Travel: |
10 in. |
| Retracted: |
12.5 in. |
| Extended: |
22.5 in. |
| Clearance: |
10.5 in. |
| Pull Pin Diameter: |
.5 in. |
