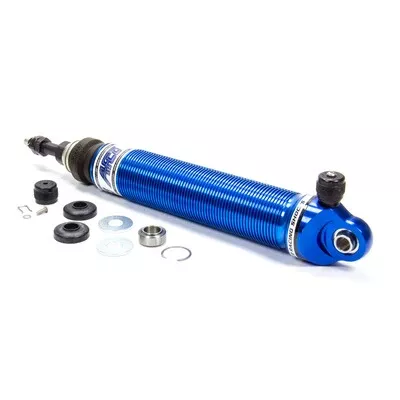

AFCO Eliminator Twin Tube Adjustable REAR shocks are built specifically for drag racing. Using advanced onboard diagnostics, AFCO developed the Eliminator Series to precisely control your race car at every point on the track. With the easy-to-use, repeatable “click” settings, this shock will give you unsurpassed traction. By allowing full control over both compression and rebound forces, Double Adjustable shocks give the tuner the ability to fine tune every aspect of the chassis movement to provide the ultimate in acceleration control and overall drivability. Body Mount: Tie Bar Mount w/ 2.375″ bolt centersShaft Mount: 9/16″ Stud (3-1/8″ length, 1-1/8″ threads, 1-3/4″ washers)
- Double Adjustable
- Stroke: 7″
- Compressed: 13.9″
- Extended: 20.9″
- MPN: 3870R
| Brand | AFCO Racing |
| Manufacturer’s Part Number | 3870R |
| Part Type | Coilover Shocks and Struts |
| Product Line | AFCO Racing Eliminator Double Adjustable Drag Shocks |
| Coilover Shock Type | Double-adjustable |
| Shock Body Material | Aluminum |
| Shock Body Finish | Blue anodized |
| Adjustable Valving | Yes |
| Number of Valving Selections | 62 |
| Extended Length (in) | 20.900 in. |
| Collapsed Length (in) | 13.900 in. |
| Upper Mount | Bearing |
| Lower Mount | Stud |
| Internal Design | Twin-tube |
| Gas Charged | No |
| Body Diameter (in) | 2.150 in. |
| Coilover Springs Included | No |
| Recommended Spring Diameter (in) | 2.625 in. |
| Recommended Spring Length (in) | 14 in. |
| Adjustable Mounting Bracket Included | No |
| Hardware Included | Yes |
| Quantity | Sold individually. |
1972-79 Fairlane/Torino/Ranchero (check extended & compression dimensions)
1966-70 Falcon (check extended & compression dimensions)
1965-86 Ford Full-Size Car (check extended & compression dimensions)
1981-82 Granada
1979-93 Mustang
1967-79 T-Bird (check extended & compression dimensions)
1979-86 Capri
1980-82 Cougar
1974-79 Cougar (check extended & compression dimensions)
1972-76 Montego (check extended & compression dimensions)
1993-02 Camaro/Firebird (check extended & compression dimensions)
1982-92 Camaro/Firebird (check extended & compression dimensions)
1967-69 Camaro/Firebird (check extended & compression dimensions)
1974-79 Chevy II/Nova (check extended & compression dimensions)
1953-82 Corvette (check extended & compression dimensions)
